The short answer: the best mask for spray paint is a reusable half-mask respirator (3M 6200, 6502QL or 7502) with OV/P100 combination cartridges such as the 3M 60921. A dust mask or a pink P100-only filter is not enough: it stops paint mist but lets the solvent vapours straight through.
There's a smell every writer knows. Nitro-based spray paint, fresh from the can, in a closed space: sharp, chemical, instant headache. For a long time most of us painted through it and thought nothing of it. That was a mistake, and this guide explains exactly why, and what to wear instead.
Why spray paint is dangerous in two different ways
Most people think the problem with spray paint is the smell. It isn't. The smell is just the signal. The real threat comes in two forms at once, and you have to stop both or you're stopping neither.
- Particles: the physical mist of paint droplets and pigment dust that fills the air when you spray.
- Organic vapours: invisible gases released by the solvents in spray paint, the ones that cause headaches, dizziness and long-term damage to the lungs and nervous system. Nitro-based paints and lacquers are especially high in them, which is why a can of Molotow Nitro or similar in a poorly ventilated spot hits so hard and so fast.
A basic dust mask or a plain particle filter stops the first. It does nothing about the second.
The most common mistake: the "pink pancakes"
Walk onto any legal wall and you'll see writers wearing flat pink disc filters clipped to their half masks. These are the 3M 2091 and 2097, known as "pink pancakes". They're P100 particle filters, which means they capture 99.97% of solid and liquid aerosols. Good filter. Wrong filter for spray paint.
The 2091 has no activated carbon at all. The 2097 has only a thin layer for nuisance-level odours and is not rated as organic vapour protection. With either one, the solvent gases pass through into your lungs. You're protected against particles and unprotected against what's actually making you feel sick. That's not a small gap. It's the whole point of the mask, missed.
The right respirator cartridge for spray paint: OV/P100
For spray paint, graffiti, lacquers and solvent-based paints you need a combination cartridge that does two jobs: an organic vapour (OV) layer of activated carbon to trap the gases, plus a P100 filter to stop the paint mist.
The right 3M cartridge is the 3M 60921 (OV/P100). NIOSH approved, black cartridge body with a magenta P100 filter, standard 3M bayonet connection. For spray paint, lacquers and solvent-based paints it's the correct and sufficient choice, and cheaper than broader multi-gas cartridges.
Two alternatives you'll often see:
- 3M 6001 is an organic vapour cartridge without the particle filter. It handles the fumes, but for spray paint it needs a particulate pre-filter on top (5N11 or 5P71 with a 501 retainer). The 60921 does both in one piece.
- 3M 60926 (multi-gas/P100) adds protection against ammonia, formaldehyde and other gases. Worth it if you work with those products. For standard spray paint sessions, the 60921 is the right call.
Choosing the mask: 3M 6000, 6500 or 7500 series
The cartridge is what protects you. The mask body decides whether it actually seals to your face and stays comfortable long enough to be worn properly. All three 3M series give the same respiratory protection when fitted correctly. What you're choosing is material and comfort.
- 3M 6200 (6000 series) is the standard entry point. Thermoplastic body, light, the most affordable. Reliable seal for most face shapes. A good first respirator.
- 3M 6502QL (6500 series) adds a quick-latch to drop the mask down without taking it off. A little more comfortable than the 6000 series on longer sessions, and often sold as a kit with cartridges, which makes it good value.

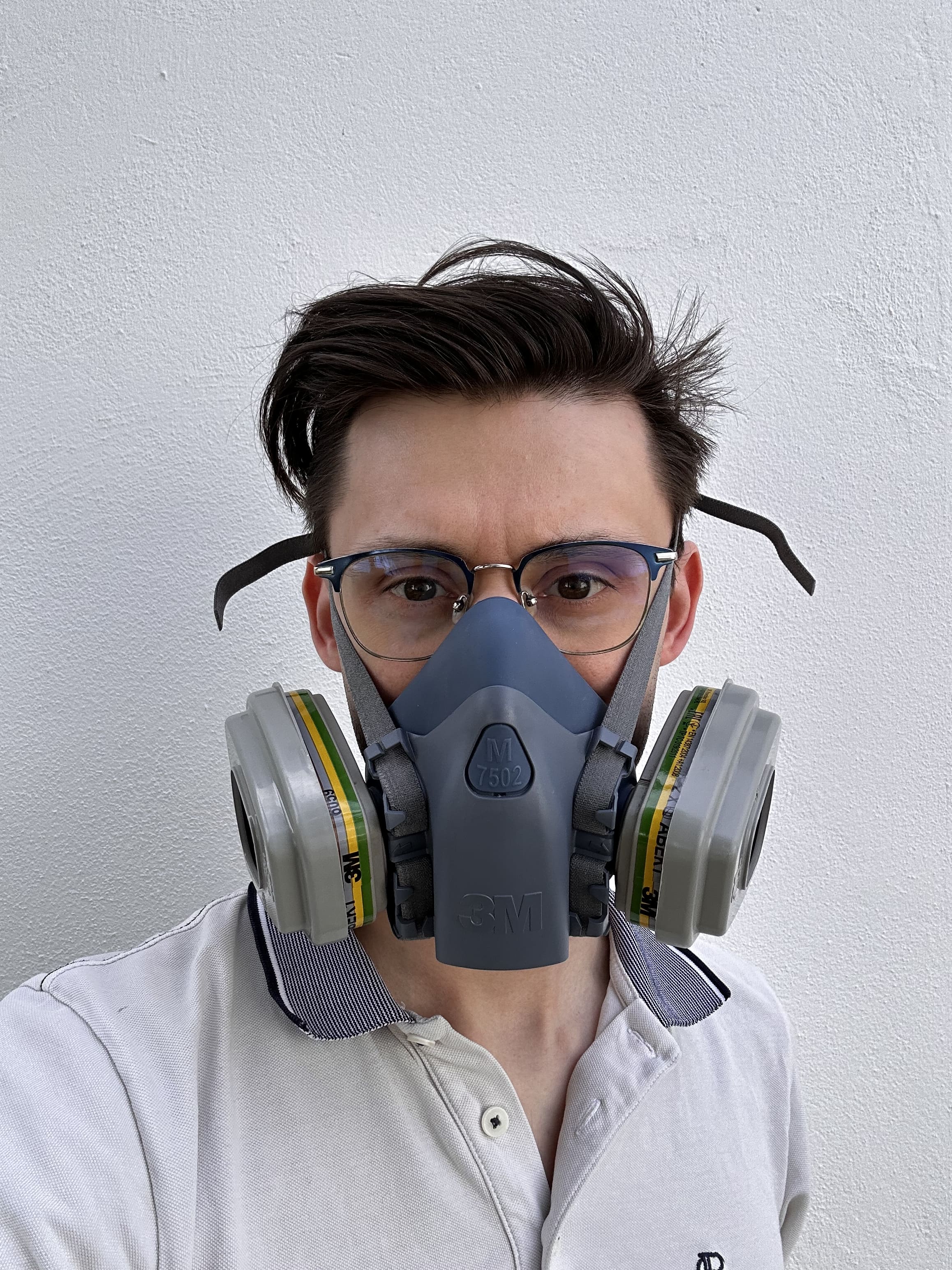

- 3M 7502 (7500 series) is the premium choice. A soft silicone facepiece that seals with less pressure, an exhaust valve that keeps glasses from fogging, and a harness that lets you lower the mask to your chest without removing your hood or hat. Roughly double the price of the 6200, and worth it for sessions longer than three or four hours. The soft silicone needs a clean shave for a proper seal.
When to replace respirator cartridges
One rule, and it's absolute: if you can smell paint through the mask, replace the cartridges immediately. When the activated carbon is saturated it can no longer trap organic vapours, and the gases pass straight through. You'll notice it as a faint chemical smell even with the mask on. That's not something to push through. That's the filter telling you it's dead.
There's no colour change or indicator. The only signal is smell. Use it.
The minimum setup
Mask body (3M 6200, 6502QL or 7502) + one pair of 3M 60921 OV/P100 cartridges. That's it. Everything else is optional.
- Don't swap the cartridges for P100-only filters.
- Don't use disposable dust masks for solvent-based spray paint.
- Don't paint without it in enclosed or poorly ventilated spaces. For indoor sessions, see spray painting indoors.
What happens in summer heat with the mask on is in the chrome burner session, and what happens without it in chrome on an abandoned factory wall.
FAQ
What is the best mask for spray painting?
A reusable half-mask respirator with OV/P100 cartridges, for example a 3M 6200 or 7502 with 3M 60921 cartridges.
Is an N95 mask enough for spray paint?
No. N95 and dust masks filter particles only. Spray paint solvents are vapours, which need activated carbon (OV) cartridges.
Can I use any 3M cartridge on any 3M mask?
All 3M 6000, 6500 and 7500 series masks use the same bayonet connection, so any cartridge in the 6000/60900 range fits all of them.
How long do the cartridges last?
It depends on exposure and ventilation. The practical rule: replace them when you smell paint through the mask. With long outdoor sessions and good airflow, a pair can last many sessions. Indoor or enclosed spaces use them up faster.
Do I need a full-face mask?
Only if you want eye protection from overspray, for example indoors, in tunnels or in corners where spray bounces back. The 3M 6900 full-face mask uses the same cartridges. For standard outdoor wall painting, a half mask is enough.
Does facial hair affect the seal?
Yes. Any stubble under the seal line breaks the mask's contact with your face and lets unfiltered air in. For the 7502 especially, a clean shave is required.
Important note on professional use
For industrial or professional use, always consult a certified safety professional and follow a formal respiratory protection programme. This guide covers artistic spray paint use and is based on publicly available 3M documentation and industry sources.
