Graffiti lettering — volume fill, TASH 2014

Graffiti lettering is not handwriting made big. It's a system: letterform, fill, outline, detail and volume. This post takes one piece from 2014 apart layer by layer, from a dark navy base to the last drip, to show how a volume fill gives letters weight and depth, and where that technique sits among graffiti lettering styles.

After the neon sessions, the question shifted. Neon is about light from inside the letter. This experiment was about something else: weight, depth, the feeling that the letter has mass and takes up space. Same wall, same crew showing up, a different problem to solve.

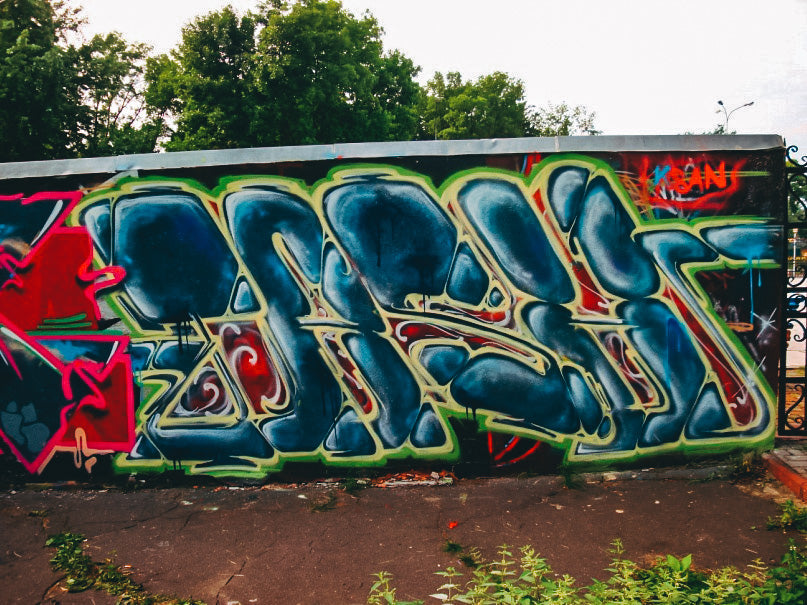

2014, a park wall. VISBY (OGAS) and POHR were there, painting the BSG crew name to the left. The background ran out before the right side of the wall, one of those small practical realities that becomes part of the record.

What graffiti lettering is — and what it isn't

Every element of graffiti lettering is a separate decision, and each one affects the others. The letterform decides what the fill has to work with. The fill decides whether the letter reads as flat or dimensional. The outline holds the fill in place and defines the letter against whatever is behind it.

Most graffiti lettering guides stop at the style categories: bubble, wildstyle, blockbuster, old school. Those are useful as a map. But the real decisions happen inside the fill, and that's where most beginners get no guidance at all.

The letterform decision — elegant and thin

The starting point was a conscious shift in letterform. These letters were drawn with more elegance than my earlier work: slimmer proportions, refined inner details. The vertical stem of the T, the crossbars of the A and H, the spine of the S. Those thin inner elements are where a writer's control shows most. Fat, rounded letters hide imprecision. Refined letters with thin internal structure expose every hesitation.

The letters were outlined first, following the sketch, with a skinny cap. The sketch matters more here than in simpler formats: a thin, elegant letterform leaves less room to improvise on the wall.

How volume fill is built — layer by layer

This is the technical core of the piece and the reason the session existed: to test a volume fill that builds the illusion of mass through layered spray. The background went down first in black fast-drying enamel, rolled on. Then the letter fill began.

1. Base layer: dark navy. Every letter filled solid in dark navy blue. This is the darkest value in the letter, and everything after it either lightens or punctuates it. Dark to light is the right order for rendered graffiti lettering, the same logic oil painters use, because light colours over dark ones are easier to control than the reverse.
2. Gradient: MTN 94, fat cap at a distance. A smooth fade from the navy toward a lighter blue across the letter surfaces. Held at a distance, the fat cap lays a fine mist that blends instead of covering. Rush it or hold the can too close and you get a hard edge instead of a fade.

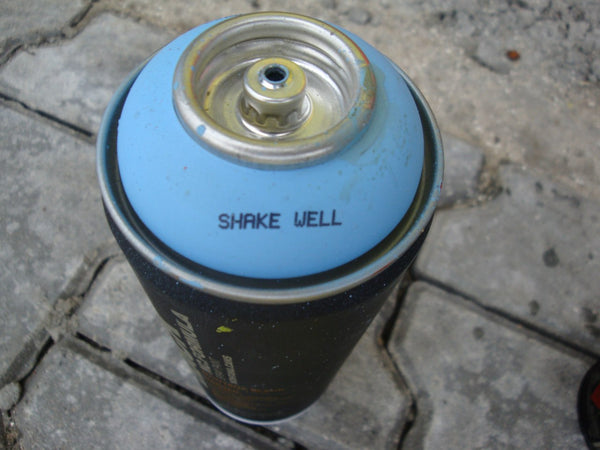

3. Light blue interior. A lighter, more saturated blue, close to sky blue, misted into the upper and inner surfaces to push the volume further. This is the layer that starts to read as light catching the letter. Shake well: the pigment settles, and an unmixed can gives patchy colour at this stage.
4. Red and burgundy shadows. Bright red toward the centre of the shadow areas, shifting to burgundy near the edges and outlines. Red as a shadow on a blue letter sounds wrong to beginners. It works because the warm-cool contrast between red and blue creates depth, and the darker burgundy at the edges turns the form away from the light. White curved lines went inside the letters at this stage as a secondary detail, giving the interior a sense of structure.
5. Yellow outline. The letter edges outlined in light yellow, a warm, high-contrast colour against the dark navy that fixed the letter shape before the next steps. Then lunch: hot dogs and coffee, about forty minutes.
6. White volume spray. After the break, white misted onto the highest points of the letter surfaces, the areas that would catch direct light if the letter were a real object. This is the highlight layer, and it's what commits the eye to reading volume instead of a flat shape.
7. Ultramarine depth. Ultramarine sprayed into the T and H to push certain areas back and deepen those letters. A darker dark against the existing range.
8. Dark navy return. The original navy brought back in chosen areas to tie the highlights back into the base, so the white doesn't float separately from the letter surface.
9. Cracks and texture. Fine yellow crack lines drawn into the letters, trimmed back precisely with the surrounding colours, then volume built around them in several colours. Detail work that needs a working skinny cap and patience. The cracks give the surface a material quality: stone, worn metal, something with history.
10. Green outline and drips. The final outline in green, a complement to the blue fill that makes the letter edge vibrate. Dark blue and light blue drips running down from the letters, extending the palette onto the wall below and adding movement at the base.

Why volume in graffiti lettering is harder than it looks

Counting every pass, the sequence above runs to about seventeen layers. Each has a correct place in the order, and changing the order changes the result. Highlights before the base fill and you paint over them. Outline before the fill and you spend the session fighting your own line. Cracks before the volume spray and the cracks disappear under the next layers.

What makes volume fill demanding isn't any single step. It's keeping the logic of the light source through all of them. Every spray decision is a statement about where the light comes from and how the surface responds. Lose track of that and the letter starts to look busy instead of dimensional.

That's the gap between graffiti lettering that has style and lettering that has volume. Style is the shape of the letter. Volume is the physics inside it.

Graffiti lettering styles — where volume fill sits

The standard ladder of graffiti lettering runs from tag to throw-up to piece to wildstyle. Alongside it are the main lettering styles:

• Bubble letters: round, inflated, the usual first style.
• Block / blockbuster: big, straight, readable letters, often rolled.
• Old school: classic, readable letters with simple arrows and clean fills.
• 3D: letters with depth and planes, like the 3D piece on brick.
• Wildstyle: interlocking letters with arrows and connections, hard to read on purpose.
• Chrome: silver fills that read as metal, covered in chrome graffiti.

Volume fill is a technique inside the piece category, and it can sit in almost any of these styles. It's what separates a flat piece (solid fill, outline, done) from a rendered one (gradient fill, highlights, shadows, material detail).

Most writers develop volume fill after building a solid understanding of letterform. The temptation is to reach for volume techniques before the letter structure is stable, and the result is a complex fill inside a weak letter, which reads as confused rather than advanced. The letter has to work first. Then the fill earns its complexity.

This piece from 2014 was an experiment in pushing fill complexity while keeping the letterform relatively controlled.

FAQ

What is a graffiti fill?
The colour inside the letters. It can be one flat colour, a fade, a pattern, or a rendered volume fill with highlights and shadows.

How do you make graffiti letters look 3D?
Pick one light source, fill dark first, fade lighter toward the surfaces facing the light, add white highlights on the highest points and deepen the areas turning away.

What cap is best for fades?
A fat cap held further from the wall than usual. It lays a fine mist that blends instead of covering.
